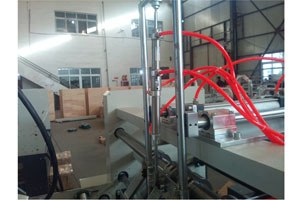

Automatic Corrugated Carton Folder Gluer & Strapping Machine

Automatic Corrugated Carton Folder Gluer & Strapping Machine


Main Specifications:

Model KFGB-2000 KFGB-2800
Max. Carton Size 900×1900mm 900×2600mm
Min. Carton Size 250×700mm 300×850mm
Max. Working Speed 139m/min 139m/min
Dimension (mm) 13000×2400×2000 14000×3000×2000
Installation Area 4500×15000mm 5000×16000mm
Total Power 7.9Kw 7.9Kw
Machine Weight 4.8t 5.0t
Power Supply Three Phase 380V Three Phase 380V
Glue Method 25mm 25mm
Glue Method Roller gluing Roller gluing
Carton Size Comparison Table:

Model   KFGB-2000 KFGB-2800
A Max 1900mm 2600mm
Min 700mm 850mm
B Max 950mm 1300mm
Min 350mm 425mm
C Min 150mm 150mm
G Max 900mm 900mm
Min 250mm 300mm

Features:
◆Product yield rate can reached 98%.
◆Machine parts manufactured by CNC lathe with high precision resulting in little vibration and long service life.
◆20mm thickness steel wall dealt with computer control aligning and 5mm thickness square foundation pipe makes the machine strong and solid. .
◆The roller are made by 12mm thickness seamless steel pipe which are grinded, balance tested and chromed, ensuring roller vibration less than 0.03 mm.
◆Four parts correction together with differential belt correction parts eliminates the fish tail problem effectively.
◆Application Ranges: A C.B. AB flutes 3/5 layers corrugated board
◆Glue even, fast-drying and easy to clean.
◆Greatly reduce labor and material cost compared with stitcher.
Structure:
①Auto Feeding ②Auto Gluing ③Auto Folding ④Auto Stacking And Counting
⑤Auto Bundling(Optional) ⑥ Electrical Parts

(1).Feeding Unit:
◆Adopt high quality rubber vacuum belt, stocking and automatic input to ensure the efficiency of feeding.
◆Special design makes the adjustment simply, quickly and precisely. The side regulation, paper feed baffle and belt are separately operated parts, which is easy to change the size of carton.
(2).Gluing Unit
◆The gluing width is 20-25 mm-gluing from bottom side.
◆The glue box can be moved left or right according to the requirement of the corrugated board.
◆The gluing amount can be adjusted.
◆The glue box is made of stainless steel-big contain and easy for cleaning.
(3).Folding Unit
◆It uses high friction belt. The folding speed is controlled by frequency converter which can be controlled separately and synchronized with the main motor.
◆Motor driven for order change adjustment-fast and convenient.
◆Re-creasing roller, re-creasing knife, side roller and flapping plate can eliminate the fish tail effectively.
(4).Stacking and Counting Unit
◆The Flapping Plate can help to reduce the fish tail phenomenon.
◆The pile number can be set at 10, 15, 20 and 25.
(5). Option  a.  Auto Bundling Unit
◆Carton piles are fed into the bundling machine automatically.
◆The pile are bundled with PE rope at = type. The piles are aligned and compressed before bundled by pneumatic devices for tidiness.
(6).Electrical Parts
Scientific and reasonable mechanical structure, reliable quality electrical elements makes the machine free of trouble.
Installation Requirement :
ii. Installation areas: Length × Width : 15000×4500mm
iii. Training, installation and debugging:
◆Seller in charge of installation, debugging and training in the buyer's factory. However the days used should be generally no more than seven days
◆The buyer should try to help as much as they can while the supplier’s engineer is debugging the machine by providing enough workers, powers, tools and some necessary documents or papers.
Main Configurations:
◆Electric Part:

Name Brand Model
Frequency converter Delta 3.7KW/2.2KW
Power Taiwan Mean Well S-150-24
Contactor French Schneider LC1-D0910M5CLC1-D0901M5C
Control button China
Control knob Fuji
Photoelectric switch Omron E3F3-D11
Air switch Chint DZ47-60
Touch screen Hitech 190mm
◆Main Mechanical Parts:
Name Brand Quantity
1 Feeding belt(A) Baiteli 6
2 Receiving belt(C) Forbo-siegling 15
3 Conveyor belt(B) Forbo-siegling 9
4 High-pressure centrifugal fan Shanghai(Halon) 1
5 Main Motor Simens(beide) 1
6 Reducer Zhejiang 6
