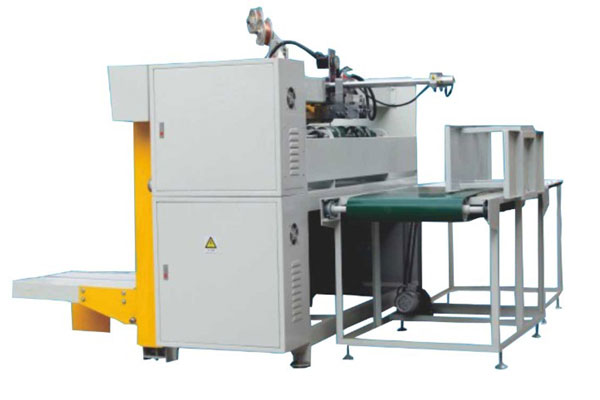

High Speed Dual-servo Semi-automatic Stitching Machine
Features:
◆Imported dual-servo drive(Patent No. 20092053719.6) of high precision reduce mechanical transmission, greatly reduce mechanical fault rate
◆Touch screen operation, easy access to change parameters (stitches pitch/number/type/rear baffle)
◆Siemens PLC control system
◆Single(/ / /), double (// // //) or strengthen(// / //) stitches can be done at one stroke, can meet customers’ varied needs
◆One minute to change the size of stitches
◆Automatic counter in the paper feeding, eject in pile for strapping
◆Can stitch on paper box with or without lid (without lid should be stated in advance)
◆All stitches are made of special steel; computer gong is precisely processed;
◆The machine features rear electric baffle function(Patent No.200920053720.9) and step motor drive
◆All switches inside control chamber, photoelectric and switches and air presser are fromTaiwan
◆Automatic counter in the latter part; deliver paper boxes in lot as set (1-99) for strapping
◆Automatic alarm device for lack of stitches
◆Easy operation; only 2 operators are needed from semi-product to finished paper boxes
Main List of parts:
◆Japan Yasukawa servo motor
◆Taiwan Tend button switch trip switch,, Taiwan Shilin Contactor, Taiwan Yangming proximity switch.
◆Taiwan Granville wheel touch screen
◆Germany Siemense PLC, Module
◆Stitch head: the entire set of materials of imported mold steel, Conputer gongs precision machining (wear resisting)
◆Taiwan Jaguar air compressor.
Main Specifications:
| Model | KLS-2800 | KLS-2460 |
| Max paper size (mm) | 1515x2800 | 1515x2460 |
| Min paper size (mm) | 300-600 | 300-600 |
| Speed (stitches/min) | 600 | 600 |
| Stitches | 1-999 | 1-99 |
| Type | Single/double/strengthen | Single/double/strengthen |
| Stitches space(mm) | 30-100 | 30-100 |
| Power (kw) | 4.8 | 4.5 |
| Weight (kw) | 2000 | 2000 |
| Paper height (mm) | 900 | 900 |
| cardboard | 3/5 layers corrugated paper | 3/5 layers corrugated paper |
| Nail wire spec. | 2.0mm (0.65-0.75) | 2.0mm (0.65-0.75) |
